Sentinel Satellite Reveals the Aftermath of Napa's Earthquake

During the morning of August 24, California's Napa Valley was struck by its biggest earthquake in a quarter century. The ESA's brand new Sentinel-1A satellite has now produced an unprecedented visualization of the ensuing rupture.

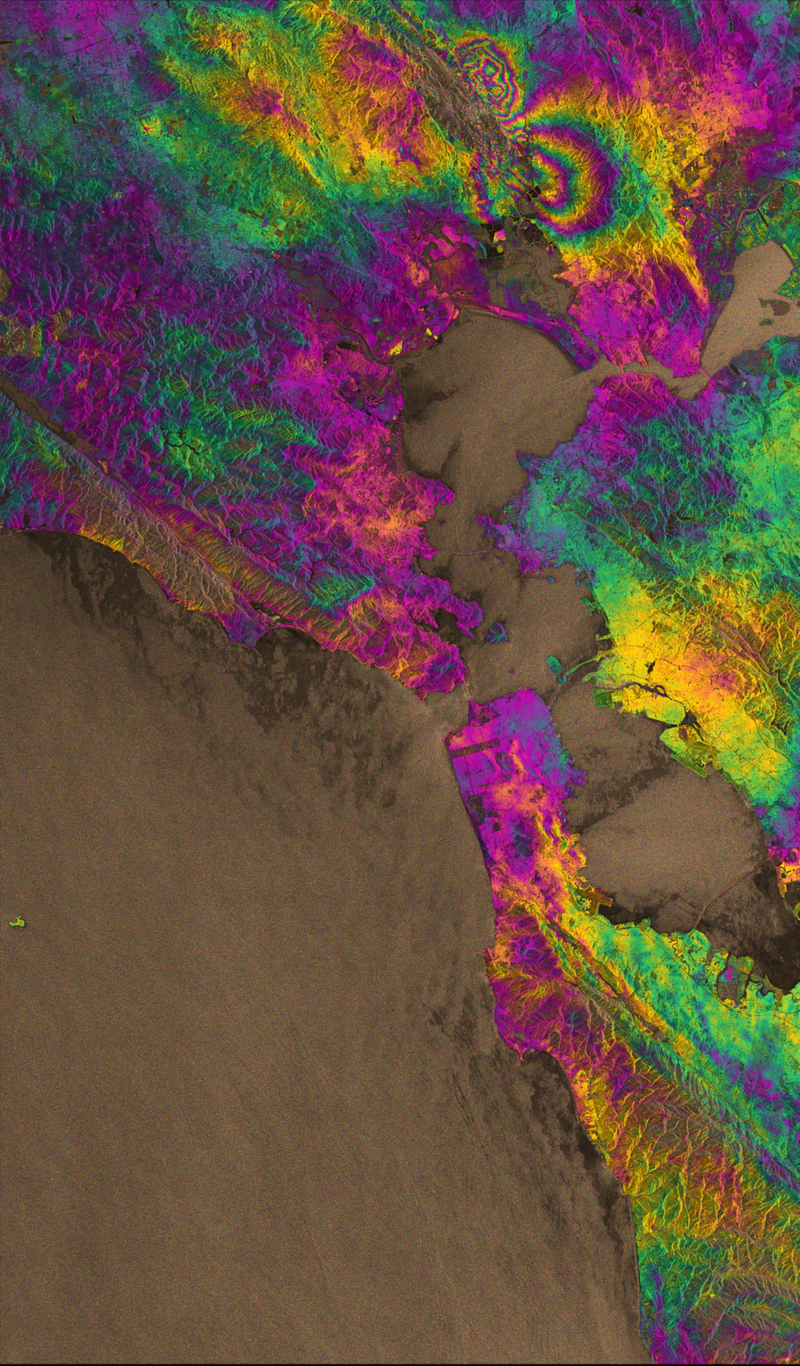

The technique is called 'synthetic aperture radar interferometry' and it combines the data of two or more satellite radar images taken of the same area — those before and after a seismic event. Small changes on the ground alter the reflected radar signal, which are represented by the rainbow-like fringes in the ensuing interferogram. The end result is actually quite gorgeous:

The image above was created by comparing radar images from August 7 and 31. The two round shapes around Napa valley indicate the degree to which the ground moved during the earthquake. Each colour cycle corresponds to a deformation of 28 mm. The maximum deformation is more than 10 cm, and an area of about 30x30 km was affected. The visualization also maps the infamous San Andreas Fault which runs along the coastline.

There are other ways of visualizing earthquakes, including the USArray project which shows how earthquake waves travel across massive expanses of landmasses.


Image credit: Copyright Copernicus data (2014)/ESA/PPO.labs/Norut/COMET-SEOM Insarap study
