NASA Put a Model F-18 in a Water Tunnel—And It Looked Spectacular

Illustration for article titled NASA Put a Model F-18 in a Water Tunnel—And It Looked Spectacular

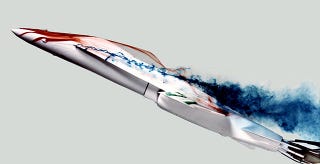

This isn’t a computer-generated image. It’s an actual picture of what happened when NASA decided to test the air flow around an F-18 by putting a model plane, and a lot of dye, in a water tunnel.

Illustration for article titled NASA Put a Model F-18 in a Water Tunnel—And It Looked Spectacular

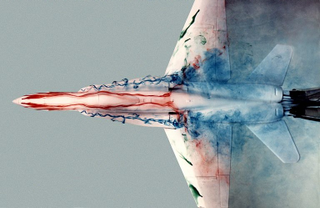

These images were created at the Dryden Flight Research Center, back in 1985. Specifically, they were created in the Dryden Water Tunnel. NASA had a procedure for simulating, and visualizing, the flight of a air craft without endangering the air craft:

“Water is pumped through the tunnel in the direction of normal airflow over the aircraft; then, colored dyes are pumped through tubes with needle valves. The dyes flow back along the airframe and over the airfoils highlighting their aerodynamic characteristics. The aircraft can also be moved through its pitch axis to observe airflow disruptions while simulating actual flight at high angles of attack.”

Advertisement

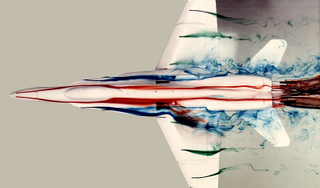

The procedure is used to check for vortices, swirls of air that might drag the plane back or knock it around.

Illustration for article titled NASA Put a Model F-18 in a Water Tunnel—And It Looked Spectacular

Images: NASA Dryden Center

Share This Story

Get our newsletter

DISCUSSION

A neat aspect of modelling like this is that you can’t satisfy all of the scales involved at the same time, so you have to pick which forces to focus on: Froude modelling, where gravity forces tend to dominate, or Reynolds modelling, where viscous forces dominate. This model would be a neat example of Reynolds modelling, since they obviously have to account for the viscous differences between air and water (duh!).
