Normally, it's the Western Powers who are remembered for developing some of the most innovative and conceptual weapons of the Second World War. But when it came to experimental military technologies, Japan suffered from no shortage of ideas. Here are 11 you should know about.

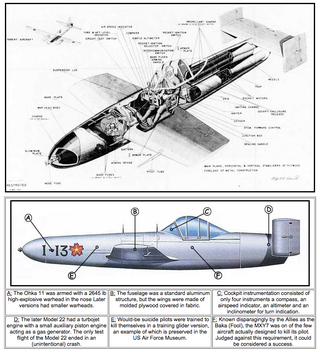

Illustration: MXY-7 Okha Suicide Attacker, by Fiddlers Green

Japan emerged as a world power in 1905 after its humiliating defeat of Russia. Though allied with the Entente during the First World War, Imperial Japan shifted its allegiances after being snubbed at Versailles. Starting in the 1930s, and allied with Nazi Germany, the empire began a series of aggressive campaigns at it worked to assert itself in the Pacific region. Its actions would eventually bring it into conflict with the United States, a development that proved to be its undoing.

Advertisement

Shōwa Japan, knowing it was up against a superior enemy, both in terms of industrial strength and technological sophistication, accelerated its efforts to keep pace. To that end, the Japanese Imperial Army was equipped with advanced conventional weapons, specialized suicide attack weapons, and even weapons to conduct biological and chemical warfare. Indeed, Japanese military planners did not care much for the Geneva Protocol. And in fact, they assumed that banned weapons were particularly effective.

The Japanese developed dozens, if not hundreds, of highly conceptual weapons during the war, including some that actually made it to the battlefield. Here are 11 you need to know about.

1. Fu-Go Balloon Bombs

As the Nazis were lobbing V2 rockets over the English Channel, the Japanese were fashioning their own "vengeance weapons" as well. Military planners, who were unable to develop an intercontinental missile, instead came up with the idea of balloon bombs.

To make it work, the Japanese attached incendiary bombs to balloons which travelled 5,000 miles toward the United States along the jet stream. The intention was to have the devices explode over the forested regions of the Pacific Northwest and start large forest fires that would divert precious U.S. manpower.

Geologist and historian J. David Rogers explains how they worked:

Advertisement

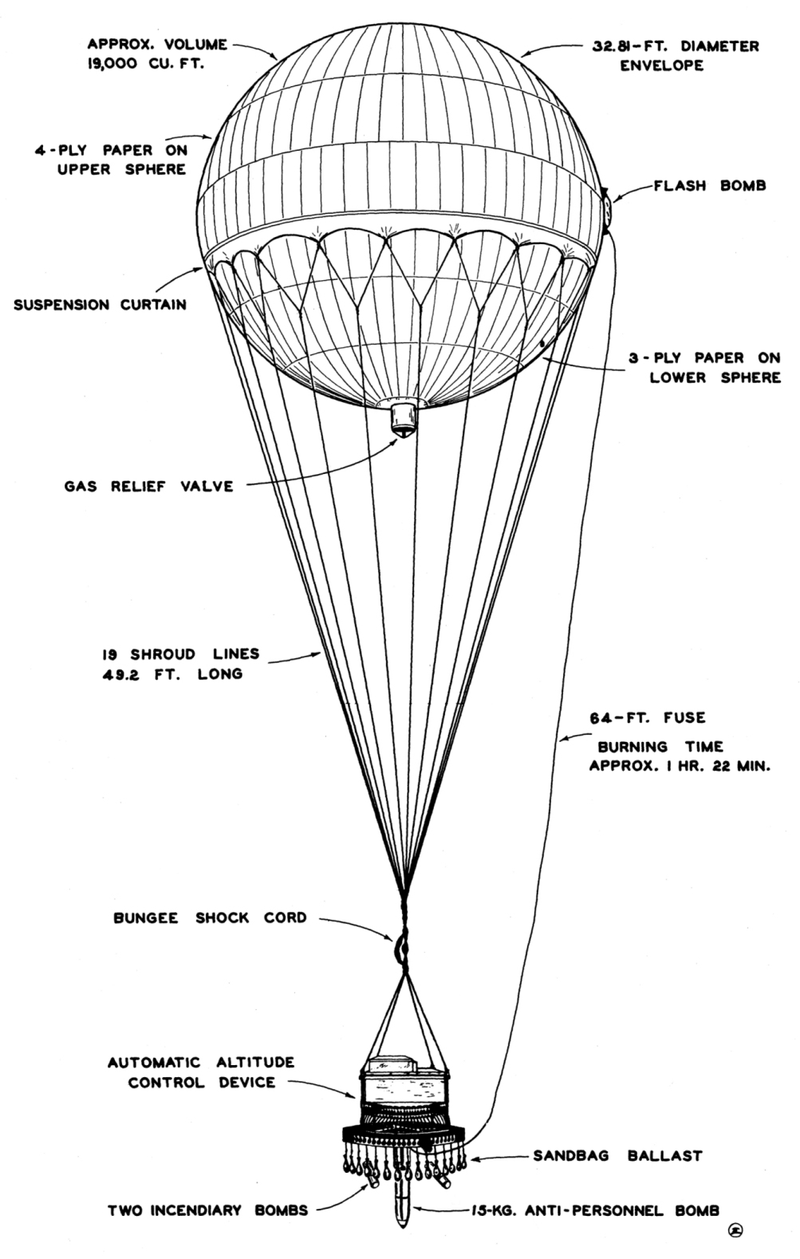

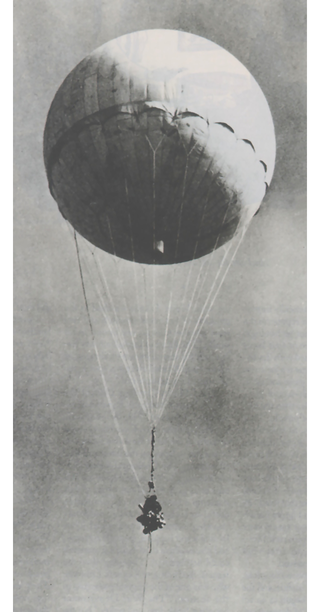

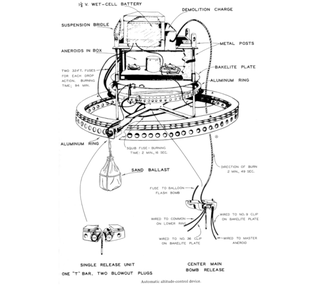

The balloons were crafted from mulberry paper, glued together with potato flour and filled with expansive hydrogen. They were 33 feet in diameter and could lift approximately 1,000 pounds, but the deadly portion of their cargo was a 33-lb anti-personnel fragmentation bomb, attached to a 64–foot long fuse that was intended to burn for 82 minutes before detonating. The Japanese programmed the balloons to release hydrogen if they ascended to over 38,000 feet and to drop pairs of sand filled ballast bags if the balloon dropped below 30,000 feet, using an onboard altimeter. Three-dozen sand-filled ballast bags were hung from a 4-spoke aluminum wheel that was suspended beneath the balloon, along with the bomb. Each ballast bag weighed between 3 and 7 pounds. The bags were programmed to be released in pairs on opposing sides of the wheel so the balloon would not be tipped to one side or another, releasing any of the precious hydrogen. In this way the balloons would rise in the daylight heat each day of the crossing and fall each evening, till their ballast bags were depleted, at which time the balloon and its deadly contents would descend upon whatever lay beneath it.

The first balloons were launched in late 1944, landing in the U.S. on November 5th off San Pedro, California. By the following day they landed as far away as Thermopolis, Wyoming. Some even landed in Canada. In all, some 285 confirmed landings and/or sightings were made. On March 5, 1945, six Americans (a minister and five children) were killed by one of the grounded balloons in Oregon while attempting to pull it through the forest back to their camp.

The U.S. government muzzled the media about the balloons for fear of encouraging the enemy. The American public was eventually made aware of the balloons after the war. (Photos via U.S. Army)

2. Sen Toku Class Mega Sub

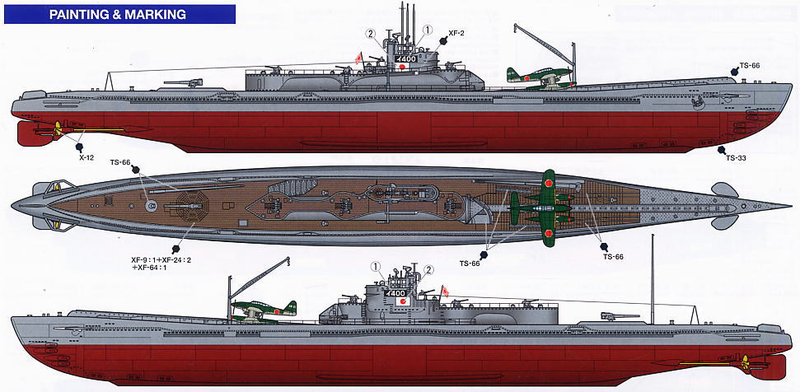

The Japanese managed to build three of these behemoths during the war, vessels which hold the record as the largest conventionally powered submarines ever built. As part of the Japanese plan to dominate the Pacific Ocean — including the Western seaboard of the United States — they were designed to attack the Panama Canal.

The subs were equipped with three Aichi M6A1 airplanes which could carry a torpedo or up to 1,763 pounds (800 kg) of bombs. They were housed in a watertight, pressure-resistant hangar. The planes were launched from a catapult located in front of the tower, and all three could be assembled, fueled, armed and launched within 45 minutes of surfacing.

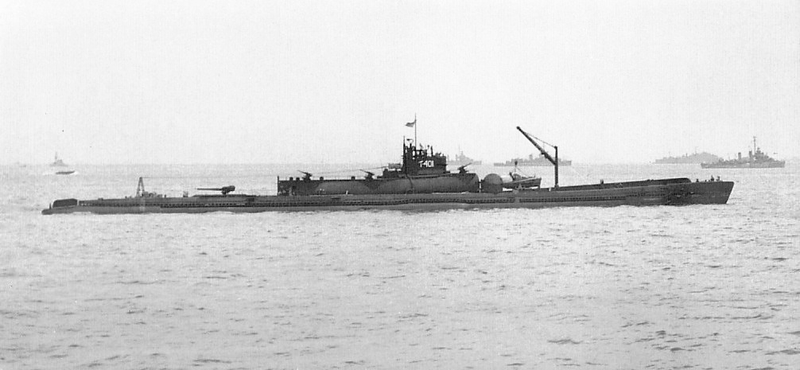

It even featured a German-inspired snorkel that was coated with a thick, rubber-like substance designed to absorb radar and sonar signals. The war ended before the Japanese could use them in combat. In 1946, the I-400 was surrendered to the USA and sunk off the coast of Hawaii. Researchers only re-discovered it last year. (Images CC)

3. Unit 731 and the Use of Bioweapons

From 1937 until the end of the war, the Japanese experimented with various biological weapons, including the toxic defoliation bacilli bomb (a precursor to Agent Orange) and the flea bomb used to spread bubonic plague. The Imperial Japanese Army's notorious Unit 731 — a covert biological and chemical warfare research and development unit — performed tests on human subjects with Bubonic plague, cholera, smallpox, botulism, and other diseases. Japanese soldiers used these bombs to to launch biological attacks, infecting agriculture, reservoirs, wells, and other areas.

According to Sheldon H. Harris, a historian at California State University in Northridge, more than 200,000 Chinese were killed in germ warfare field experiments. His work also shows that plague-infected animals were released toward the close of the war, which caused "outbreaks of the plague that killed at least 30,000 people in the Harbin area from 1946 through 1948." Some Japanese scholars contest these figures, but they're probably accurate.

An unidentified victim of Unit 731. (Image: China-Underground via Government of Japan)

And as noted by historian Antony Beevor, the Japanese also planned to these weapons against American soldiers in the Pacific theatre, along with delivering disease-carrying balloon bombs to the United States. They even had a plan in the summer of 1945 to use kamikaze pilots to dump plague-infected fleas over San Diego. (Images via War Pardons)

Advertisement

Sponsored

Related: Nazis used mosquitoes as biological weapons

It's worth noting that commanders of Unit 731 were granted immunity from prosecution in exchange for sharing biological warfare secrets with the U.S. military. Relatedly, Japan was the only country to use chemical weapons, such as mustard gas, during the Second World War.

4. Fukuryi Suicide Attack Suits

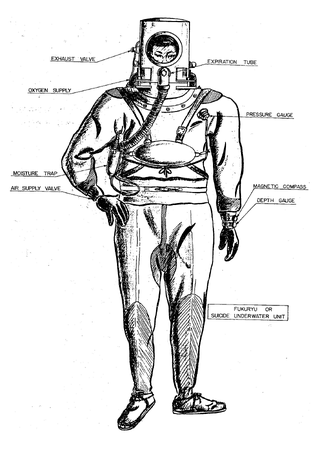

These special dive suits were designed for the Japanese Special Attack Units to fend off an invasion of the Home islands by Allied forces. The suits were armed with a mine containing 33 pounds (15 kg) of explosives attached to a 16 foot (5 meter) bamboo pole.

The divers, weighed down by 20 pounds (9 kg) of lead, would walk underwater for as much as six hours and at depths of 16-23 feet (5-7 meters). The divers, upon reaching the hull of an enemy ship, would detonate the explosives, killing themselves in the process. It's not known if this suit was ever used in combat, but there are accounts of U.S. infantry landing craft and a surveyor ship being attacked by suicide swimmers. (Image: U.S. Navy/CC)

5. The "Purple" Encryption Machine

The German Enigma Machine may be the most famous encryption device of the Second World War, but it was by no means the only one. In 1937, the Japanese developed the "97-shiki O-bun In-ji-ki" or "97 Alphabetical Typewriter," named for its creation on the Japanese year 2597. This device was better known by its U.S. code-name: "Purple".

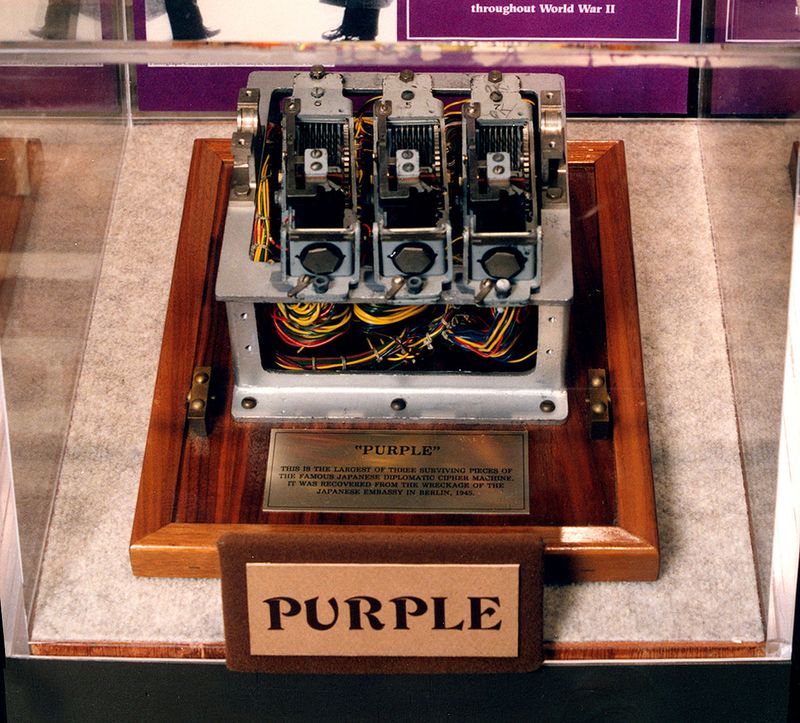

The machine consisted of two typewriters and an electrical rotor system with a 25-character alphabetic switchboard. Like the Enigma machine that inspired it, a plaintext, or unencrypted message, could be manually inputted. But its main innovation was the second electric typewriter, which would print the encrypted message onto a piece of paper (Enigma presented text in the form of blinking lights). Thus, only one person was needed to operate it. And because the Japanese changed the key on a daily basis, codebreakers weren't able to find patterns in the messages. As Alberto Perez notes, "The switchboard contained 25 connections, which could be arranged into 6 pairs of connections, producing 70,000,000,000,000 possible arrangements."

Advertisement

Advertisement

(image: USAF/CC)

Incredibly, U.S. code breakers found a way to crack the machine. You can learn more about how they did it and the Purple machine here.

6. Yokosuka MXY-7 Ohka Kamikaze Plane

As the war progressed, and as at the Japanese refined their kamikaze techniques, they began to develop aircraft explicitly for that purpose. The Yokosuka MXY-7 was a rocket-propelled aircraft that made its debut in September 1944. To build the machine, the Japanese used as little important raw materials as possible, and the plane's construction was extremely rudimentary.

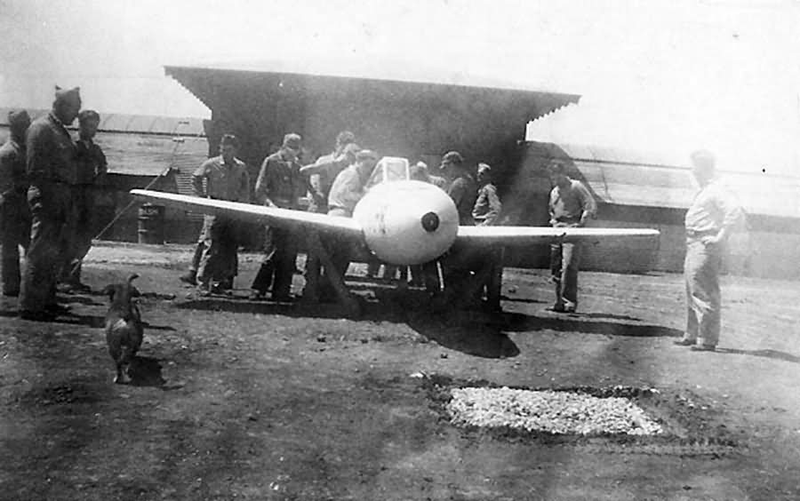

A captured Ohka plane. (Image: U.S. Army)

During combat, the Ohka was carried under the fuselage of a Mitsubishi G4M until the target was within close range, when it was released. The pilot would try to glide as close to the target as possible before firing the rockets and smashing into the target.

The weapon was armed with a 2,643 pound warhead. Its intense speed made it virtually impossible to intercept by anti-aircraft fire. That said, along with the carrier plane, it was extremely vulnerable during the gliding phase. What's more, it was very difficult to steer once the rockets had been fired. Despite these limitations, at least one US destroyer was sunk by this weapon.

7. Mitsubishi J8M (Shushi) Rocket-powered Interceptor Aircraft

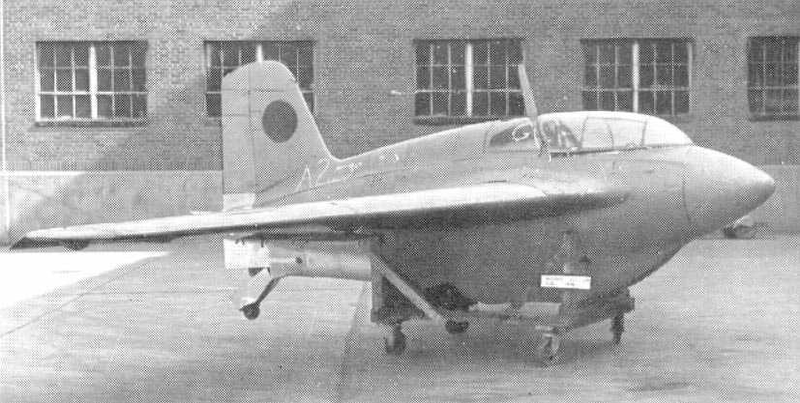

If you think this looks similar to the German Messerschmitt Me 163 Komet, you're right.

The J8M1 was supposed to be a license-built copy of the advanced Nazi aircraft, but the Germans weren't able to ship a functional version to Japan (a German submarine with an actual Komet on board was sunk en route to Japan). Instead, Japanese designers had to reverse-engineer the advanced attack plane from a flight operations manual and limited technical blueprints.

Advertisement

Advertisement

Indeed, the Japanese were eager to build an interceptor plane in consideration of the Allied bombing campaign in Europe. Military planners feared it would only be a matter of time before a similar campaign raged over Japan. Because the B-29 Superfortresses operated at an altitude out of reach of most Japanese fighters, the Me 163 was thus seen as a potential solution to the problem.

Despite not having a functional model to work off of, a single prototype was tested before the end of the war. On July 7, 1945, the J8M made its maiden flight with Lieutenant Commander Toyohiko Inuzuka at the controls. The inaugural flight was brief and disastrous. The J8M1 took off successfully, but the engine failed during the steep climb, crashing and killing the pilot. Six more prototypes were built, but none of them flew before the end of the war.

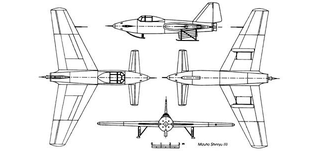

Along these lines, there was also the Mizuno Shinryu, a late-WW2 rocket-powered interceptor:

8. O-I Super- and Ultra-heavy Tanks

The Japanese aren't typically remembered for their tanks, though they did have some fairly good ones, including the 97 Chi-Ha medium tank. But late in the war they had the ambitious — if not completely crazy — idea to build super-heavy and even ultra-heavy tanks for use in the Pacific Theatre.

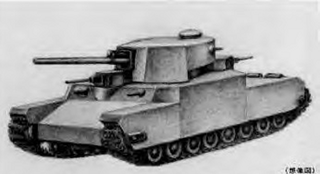

These beasts would have been absolutely massive, capable of carrying a crew of 11 in its 100 to 120 ton body. The super-heavy featured three turrets, one large cannon, and two smaller guns. An uncorroborated report claims that one of these tanks was sent to Manchuria, but it's unknown if it ever saw combat.

The advanced experimental prototype, the ultra-heavy O-I, would have featured four turrets.

9. Ku-Go Death Ray

Like many other combattants, the Japanese were actively working to develop a death ray, a concentrated beam of energy that could take down aircraft hundreds of miles away. According to documents confiscated by the U.S. military after the war, work on a Japanese death ray began as early as 1939 at laboratories in Noborito. To that end, the researchers developed a high-powered magnetron that could generate a beam of radiation. Physicist Sinitiro Tomonaga's team developed a magnetron measuring 8 inches (20 cm) in diameter with an output rated at 100kW. It's doubtful, however, that this technology could have worked like the death rays of science fiction. Calculations suggested that the beam, if properly focused, could have killed a rabbit over a distance of 1,000 yards, but only if the rabbit stayed perfectly still for at least 5 minutes.

10. Flying Tanks

One of the major problems faced by the Japanese military during WW2 was the challenge of transporting heavy equipment, like tanks, from island to island. A potential solution was found in the form of flying, or rather gliding, tanks.

These light tanks featured detachable wings, empennage (stabilizing surfaces at the tail-end of an aircraft), and take-off carriages. But because the tracks of the tank would never survive a landing, a pair of detachable skis were attached to the machine. Once detached from an aircraft, like the Mitsubishi Ki-21 "Sally" heavy bomber, it would coast to the destination like a glider, land, and assume responsibilities as an armoured ground vehicle.

Advertisement

Advertisement

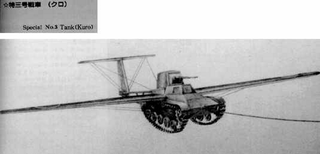

The Japanese managed to produce some prototypes of these flying tanks, including the Maeda Ku-6 and the Special No. 3 Flying Tank, or Ku-Ro.

11. Z Superbombers Project

Like the Nazi Amerika Bomber project, Imperial Japan wanted an intercontinental bomber capable of reaching North America. As the war progressed, the Japanese were desperate for something like the American B-29 Superfortress. In 1941, the Imperial Japanese Navy introduced the experimental 13-Shi Attack Bomber, a four-engined long-range heavy bomber. But military planners wanted something considerably larger, heavier, and faster — something capable of flying at 32,800 feet with a load of twenty-two 1,000 pound bombs.

Designs were presented to the Imperial Japanese Army, including the the Nakajima G10N (pictured above) and Kawasaki Ki-91, the former of which featured 237 foot wingspans and a total length of 144 feet. It would have been capable of reaching speeds of 365 mph (590 km/h) at 25,000 feet and powered by six engines of 5,000 horsepower each; to that end, the Nakajima Aircraft Company began developing engines for the plane, and proposed doubling HA-44 engines (the most powerful engine available in Japan) into a 36-cylinder engine. Project Z was cancelled in July 1944 owing to deteriorating war conditions.

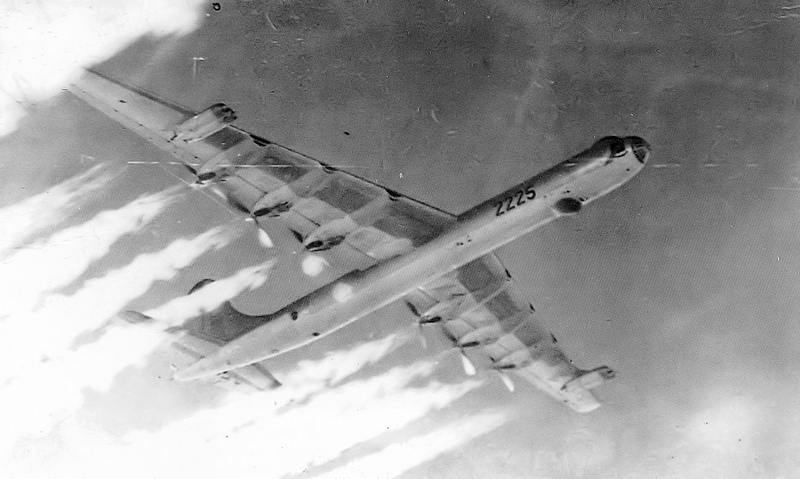

Historian Steve Horn says the monstrous Project Z bomber should be compared more equally with the postwar Convair Consolidated Peacemaker bomber (pictured) in terms of size, weight, and performance, rather than the wartime Superfortress. (Image: USAF)

Advertisement

Related: How the Nazis tried to bomb New York | Weapons from WW2 you probably never heard of

Sources: Tsyneishi Keiichi: "Unit 731" | NYT: "Unmasking Horror — A special report.; Japan Confronting Gruesome War Atrocity" | Brian Ford: Secret Weapons | J. D. Rogers: "How Geologists Unraveled the Mystery of Japanese Vengeance Balloon Bombs in World War II" | "How the U.S. Cracked Japan's 'Purple Encryption Machine' at the Dawn of World War II" | Steve Horn: The Second Attack on Pearl Harbor: Operation K and Other Japanese Attempts to Bomb America in World War II | Alexander Ludeke: Weapons of World War II
